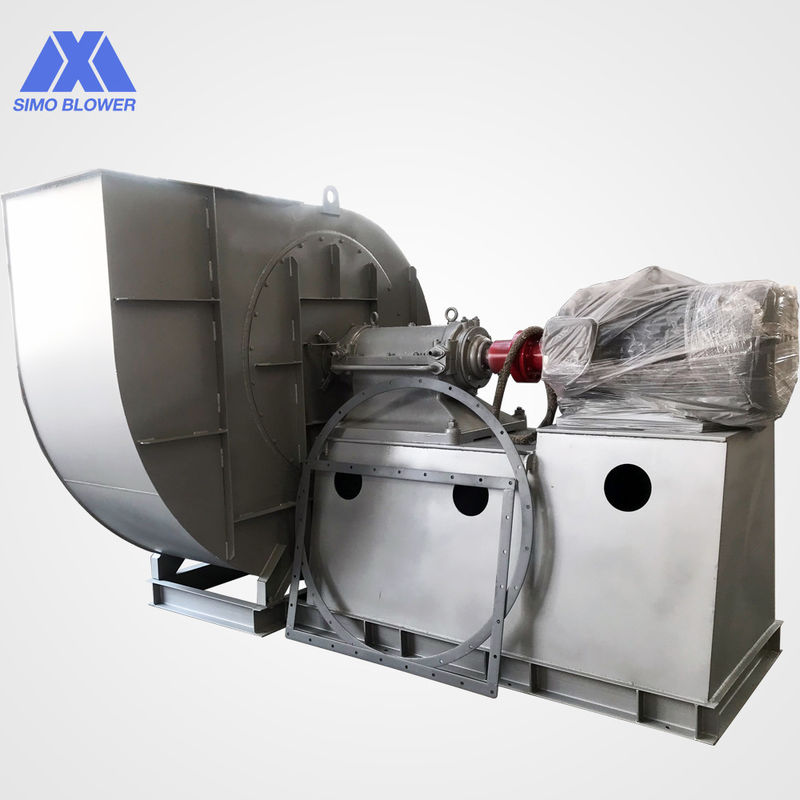

Cogeneration Circulating Fluidized Bed Boiler Supporting Primary Fan Secondary Fan Blower
Detail introduction:
This secondary centrifugal fan blower is designed to support cogeneration circulating fluidized bed boilers, specifically engineered to optimize combustion efficiency and improve boiler operation. Using advanced centrifugal fan technology, it plays a crucial role in the circulating fluidized bed boiler system by enhancing airflow, ensuring the complete combustion of fuel particles, and thus improving thermal efficiency while reducing emissions.
The fan is designed for high efficiency and durability, capable of continuous operation in high-temperature and high-pressure environments. It is made from high-quality, high-temperature-resistant materials, offering strong corrosion and wear resistance, making it ideal for the harsh working conditions found in circulating fluidized bed boiler systems. Whether for new projects or retrofitting existing boiler equipment, this secondary fan blower provides stable and reliable support for the circulating fluidized bed boiler system.
Typical applications include: building ventilation, mine ventilation, smoke evacuation, drying, clinker cooling, transport of gas, transport of lightweight materials, blasting and drafting of industrial boiler systems, and supply of air to kiln systems/incinerator systems and induced air, air purification equipment, industrial dust collector systems, etc.
Product Features
Technical specifications:
The following datas are only part of performance of our product.
If you can't find the datas you need, pls send us your performance requirements
we will provide you customized design service.
| Series no. |
4-10 series |
Feature selection |
| Normal |
anti-corrosion |
wear-resisting |
High temperature |
anti-explosion |
Remarks |
| Performance |
Impeller diameter |
800-2950mm |
|
| Rotation speed |
580-1450r/min |
|
| Pressure range |
553-7218Pa |
|
| Flow range |
15229-810000m³/h |
|
| Structure |
Blade type |
Backward, Straight, Aerofoil type |
|
| Impeller support |
SWSI(Single Width, Single Inlet), DWDI(Double Width, Double Inlet), Overhung type |
|
| Lubrication method |
Oil bath lubrication, grease lubrication, lubrication oil station |
Can be specified |
| Cooling method |
Air cooling, Water cooling, Oil cooling |
Can be specified |
| Driven mode |
Direct driven, Coupling driven, Belt driven |
Can be specified |
| Gas composition |
Gas temperature |
Normal |
Customer request |
Customer request |
≥250 |
Customer request |
|
| gas characteristic |
Clean gas |
Corrosive gas |
Particulate dust |
High temperature gas |
Flammable gas, explosive gas |
|
| System configuration |
Motor brand |
Chinese famous brand, ABB, Siemens, WEG etc |
Can be specified |
| Impeller |
High quality carbon steel |
FRP, Stainless steel, Rubber Lining |
Wear-resistant layer or wear-resistant liner, ceramic patch |
High temperature high quality alloy steel |
FRP, Aluminum alloy |
Can be specified |
| Air inlet cone |
High quality carbon steel |
FRP, Stainless steel, Rubber Lining |
High quality carbon steel |
High quality carbon steel |
High quality carbon steel |
Can be specified |
| Casing |
High quality carbon steel |
FRP, Stainless steel, Rubber Lining |
High quality carbon steel |
High quality carbon steel |
High quality carbon steel |
Can be specified |
| Air damper |
High quality carbon steel |
FRP, Stainless steel, Rubber Lining |
High quality carbon steel |
High quality carbon steel |
High quality carbon steel |
Can be specified |
| Main shaft |
High strength carbon steel, Alloy structural steel |
Can be specified |
| Bearing |
ZWZ, SKF, FAG, NSK |
Can be specified |
| Bearing housing |
Cast iron |
|
| Foundation bolts |
GB799-1988 |
|
| Option parts |
System base frame, Protective screening, Silencer, Inlet & Outlet flexible connections, Inlet & Outlet counter flange, Air damper, Electric actuator, Shock absorber, Diaphragm coupling, Fluid coupling, Motor rain cover, Temperature sensor, Vibration sensor, Soft starter, Inverter, Special Electrical Motor, System monitoring Instrument. |
Production Process
We are strict with every step about the industrial centrifugal fan and axial fan.
Related products
Company Profile
Pursue excellent quality, make perfect product!
Cooperating customers
Packaging & Shipping
Delivery detail: 35 days after receive your payment
FAQ&Contact us
1. How many years your company has experience in centrifugal fan machines?
Answers: Xinxiang SIMO BLOWER Co.,Ltd was founded in 1955. We have more than 70 years experience on centrifugal fan. We are manufacturer. Our product has been delivered to more than 40 countries and cities.
2. How about your company's pre-sales service and after-sales service?
Answers: before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition. To make sure the centrifugal fan efficiency operation. And also welcome to visit SIMO BLOWER to see the products production process and quality monitoring system. After sales service, we will offer 12 months' repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.
3. Does your company have qualifications?
Answers: all of our product are produced by our company will pass ISO 9001-2008 and CE.
