अनुकूलित केन्द्रापसारक पंखे
>

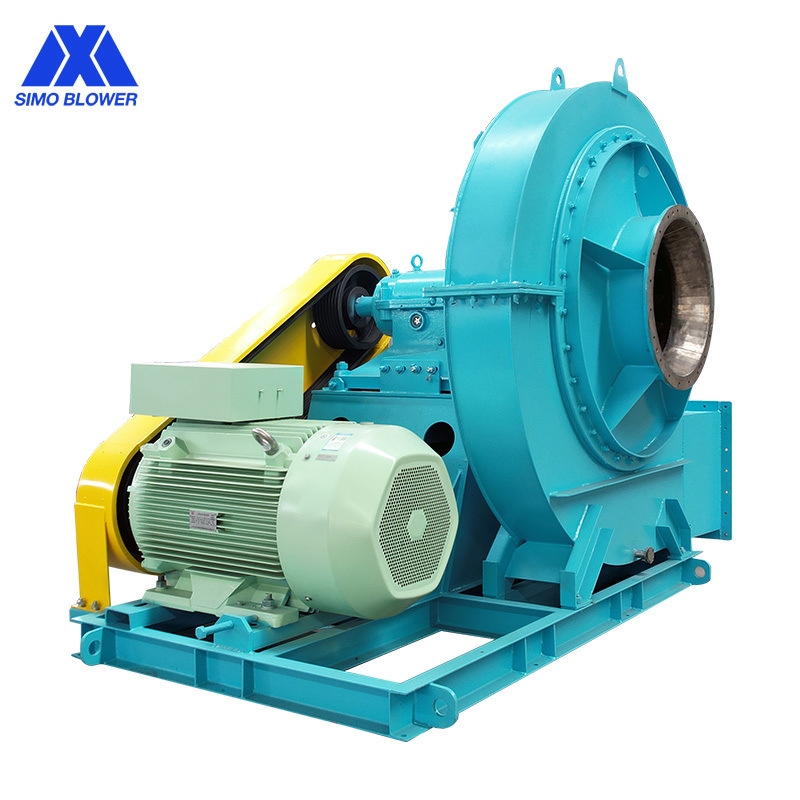

Titanium Material Belt Driven Ventilation Centrifugal Blower Fan for Chemical Industriesies

Titanium Material Belt Driven Ventilation Centrifugal Blower Fan for Chemical Industriesies

उत्पाद का विवरण:
उत्पत्ति के प्लेस: चीन
ब्रांड नाम: SIMO BLOWER
प्रमाणन: CE/ISO9001/ISO45001
मॉडल संख्या: सिमो ब्लोअर 9-08
विस्तृत जानकारी
उत्पत्ति के प्लेस:
चीन
ब्रांड नाम:
SIMO BLOWER
प्रमाणन:
CE/ISO9001/ISO45001
मॉडल संख्या:
सिमो ब्लोअर 9-08
लागू उद्योग:
विनिर्माण संयंत्र, निर्माण कार्य, ऊर्जा और खनन, औद्योगिक उत्पादन प्रणाली
बिक्री के बाद सेवा प्रदान की:
क्षेत्र स्थापना, कमीशन और प्रशिक्षण
उत्पत्ति के प्लेस:
हेनान, चीन
वोल्टेज:
380V/415V/440V/660V/6KV/10KV
अनुकूलित समर्थन:
OEM, ODM, OBM
ब्लेड सामग्री:
कार्बन स्टील, स्टेनलेस स्टील
बढ़ते:
मुक्त होकर खड़े होना
मोटर:
पहनने प्रतिरोधी प्ररित करनेवाला ब्लेड
प्ररित करनेवाला:
बैकवर्ड इम्पेलर ब्लेड
गारंटी:
1 वर्ष
प्रमुखता देना:

High Light

प्रमुखता देना:

titanium belt driven centrifugal fan

,

chemical industry ventilation blower

,

customized centrifugal fan with warranty

Trading Information
न्यूनतम आदेश मात्रा:
≥1 सेट
मूल्य:
$500-1,0000.00/set
पैकेजिंग विवरण:
1. स्टैंडर्ड एक्सपोर्ट वुडन केस 2. स्टील पैलेट वॉटरप्रूफ क्लॉथ पैकेज 3. आपकी आवश्यकता को पूरा करने क
प्रसव के समय:
35 दिनों की बातचीत की जानी चाहिए
भुगतान शर्तें:
एल/सी, टी/टी, डी/पी
आपूर्ति की क्षमता:
300sets 30 दिन
उत्पाद का वर्णन
Titanium Material Belt Driven Ventilation Centrifugal Blower Fan for Chemical Industries
Titanium Material Belt Driven Chemical Ventilation Centrifugal Blower Fan

SIMO Blower has been deeply involved in the chemical industry for many years and has designed many new models for use, which have received widespread praise from customers worldwide.

Titanium Material Belt Driven Ventilation Centrifugal Blower Fan for Chemical Industriesies 0
Product Features
  • It is capable of outputting a higher outlet pressure while providing more gas flow with lower noise. Stable operation at higher media temperatures.
  • The fan speed can be flexibly set by matching different pulley diameters to make the fan run at the highest efficiency point and reduce energy waste.
  • Motor sliding guides are provided for easy tensioning of the belt to reduce energy loss due to belt slack.
  • The bearing housing is reserved for temperature and vibration sensor mounting positions, for convenient to install the fan operation monitoring device.
  • Use liquid lubricant, it is not necessary to open the bearing housing to replace and fill the oil. The bearing housing is provided with an observation window for easy observation of the quality and stock of the lubricating oil.
  • The bearing housing uses a labyrinth mechanical seal, a unique Leak proof oil design inside, a vent hole at the top, and a sealant on the joint, completely eliminating the possibility of oil leakage in the bearing housing.
Technical Specifications
Series no. 9-08 series Feature selection
Performance Impeller diameter 400-3500mm
Rotation speed ≤3000rpm
Pressure range 3215-27349Pa
Flow range 1049-330301m3/h
Structure Blade type Backward, Straight, Aerofoil type
Impeller support SWSI(Single Width, Single Inlet), DWDI(Double Width, Double Inlet), Overhung type
Lubrication method Oil bath lubrication, grease lubrication, lubrication oil station (Can be specified)
Cooling method Air cooling, Water cooling, Oil cooling (Can be specified)
Driven mode Direct driven, Coupling driven, Belt driven (Can be specified)
Gas composition Gas temperature Normal | Customer request | Customer request | ≥250ºC | Customer request
gas characteristic Clean gas | Corrosive gas | Particulate dust | High temperature gas | Flammable gas, explosive gas
System configuration Motor brand Chinese famous brand, ABB, Siemens, WEG etc (Can be specified)
Impeller High quality carbon steel | FRP, Stainless steel, Rubber Lining | Wear-resistant layer or wear-resistant liner, ceramic patch | High temperature high quality alloy steel | FRP, Aluminum alloy (Can be specified)
Air inlet cone High quality carbon steel | FRP, Stainless steel, Rubber Lining | High quality carbon steel | High quality carbon steel | High quality carbon steel (Can be specified)
Casing High quality carbon steel | FRP, Stainless steel, Rubber Lining | High quality carbon steel | High quality carbon steel | High quality carbon steel (Can be specified)
Air damper High quality carbon steel | FRP, Stainless steel, Rubber Lining | High quality carbon steel | High quality carbon steel | High quality carbon steel (Can be specified)
Main shaft High strength carbon steel, Alloy structural steel (Can be specified)
Bearing ZWZ, SKF, FAG, NSK (Can be specified)
Bearing housing Cast iron
Foundation bolts GB799-1988
Option parts System base frame, Protective screening, Silencer, Inlet & Outlet flexible connections, Inlet & Outlet counter flange, Air damper, Electric actuator, Shock absorber, Diaphragm coupling, Fluid coupling, Motor rain cover, Temperature sensor, Vibration sensor, Soft starter, Inverter, Special Electrical Motor, System monitoring Instrument.

If you have requirements of our products, please leave us the parameter information of your need, and then our technical engineers will provide you with professional fan solutions.

Titanium Material Belt Driven Ventilation Centrifugal Blower Fan for Chemical Industriesies 1
Manufacturing Process
Titanium Material Belt Driven Ventilation Centrifugal Blower Fan for Chemical Industriesies 2
Our Advantages
Titanium Material Belt Driven Ventilation Centrifugal Blower Fan for Chemical Industriesies 3 Titanium Material Belt Driven Ventilation Centrifugal Blower Fan for Chemical Industriesies 4
Cooperating Customers
Titanium Material Belt Driven Ventilation Centrifugal Blower Fan for Chemical Industriesies 5

If you have a need for a fan in the Petrochemical industry, please provide the operating requirements and parameter information, and we will provide you with professional fan solutions.

Contact Us for Custom Solutions
